MIT VisiPrint：AI预演3D打印成品效果

For anyone who has ever hit “print” only to be disappointed by the final color, texture, or finish of a 3D printed object, a groundbreaking solution is on the horizon. Researchers at the Massachusetts Institute of Technology (MIT) have developed an AI-powered system called VisiPrint that generates a hyper-accurate, aesthetics-first preview of a 3D print’s final appearance. This innovation promises to drastically reduce the material waste and time associated with trial-and-error printing.

对于任何曾按下“打印”按钮，却对3D打印成品的颜色、纹理或表面效果感到失望的人来说，一项突破性的解决方案即将问世。麻省理工学院（MIT）的研究人员开发了一套名为VisiPrint的人工智能系统，它能生成高度精确、以美学为先的3D打印最终外观预览。这项创新有望大幅减少因反复试错打印而产生的材料浪费和时间消耗。

Current slicer software is engineered for structural accuracy, not visual fidelity. It leaves users guessing about crucial aesthetic qualities like color saturation, surface texture, gloss, and translucency. This disconnect between the digital preview and the physical result is a major source of frustration and waste, leading to repeated reprints. This inefficiency impacts everyone from hobbyists to professional fabricators, contributing to significant material costs and extended project timelines.

当前的切片软件是为结构精度而非视觉保真度设计的。它让用户只能猜测关键的美学品质，如色彩饱和度、表面纹理、光泽度和透明度。数字预览与物理结果之间的这种脱节是导致挫败感和浪费的主要根源，常常引发反复重印。这种低效性影响着从爱好者到专业制造商的每个人，导致显著的材料成本增加和项目周期延长。

“3D printing can be a very wasteful process,” says Maxine Perroni-Scharf, lead author of the study. “To make 3D printing more sustainable, we want to reduce the number of tries it takes to get the prototype you want. The user shouldn’t have to try out every printing material they have before they settle on a design.”

“3D打印可能是一个非常浪费的过程，”该研究的主要作者Maxine Perroni-Scharf说。“为了使3D打印更具可持续性，我们希望减少获得理想原型所需的尝试次数。用户不应该在确定设计之前，必须尝试他们拥有的每一种打印材料。”

VisiPrint elegantly simplifies the preview process. It requires just two inputs from the user:

VisiPrint优雅地简化了预览过程。它只需要用户提供两个输入：

From there, a two-stage AI pipeline takes over. First, a computer vision model analyzes the material sample image to extract key appearance features—color, gloss, and translucency. This data is then passed to a generative AI model. This second model is the true breakthrough: it reconstructs the object’s geometry while intelligently accounting for the specific slicing pattern the printer’s nozzle will follow. These layer-by-layer details are precisely what most dramatically affects a print’s final look.

之后，一个两阶段的AI流程接管工作。首先，一个计算机视觉模型分析材料样本图像，提取关键的外观特征——颜色、光泽度和透明度。这些数据随后传递给一个生成式AI模型。这第二个模型是真正的突破：它在重建物体几何形状的同时，智能地考虑了打印机喷嘴将遵循的特定切片路径。这些逐层的细节正是最显著影响打印最终外观的因素。

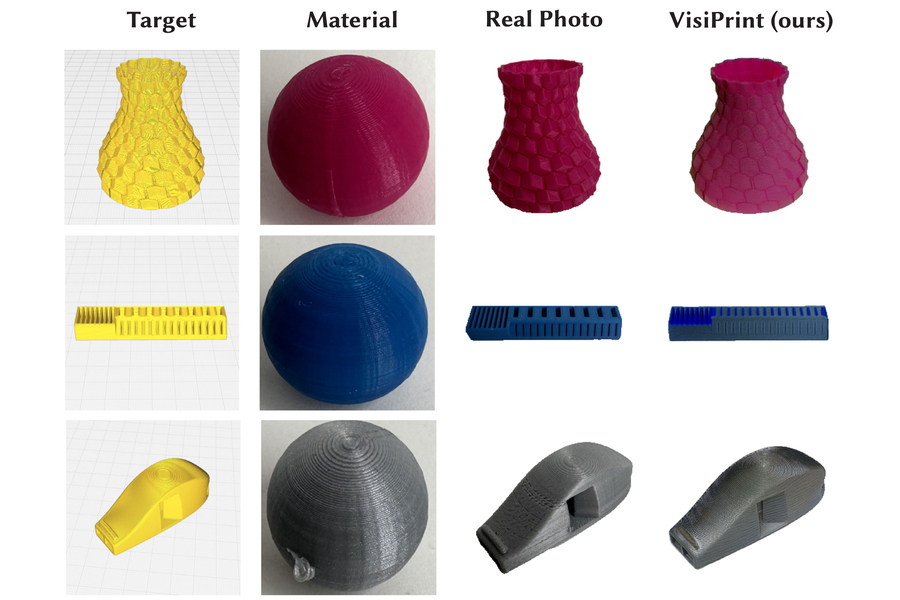

The researchers developed a novel conditioning method to balance a depth map (for accurate shape and shading) with an edge map (to capture internal contours and structural boundaries). “We had to be careful to combine them in the right way,” notes Perroni-Scharf. The result is a preview generated in about one minute—more than twice as fast as competing methods—that users consistently rated as more accurate in both overall appearance and textural similarity.

研究人员开发了一种新颖的条件调节方法，以平衡深度图（用于精确的形状和阴影）与边缘图（用于捕捉内部轮廓和结构边界）。“我们必须小心地以正确的方式结合它们，”Perroni-Scharf指出。其结果是在大约一分钟内生成的预览——比竞争方法快一倍以上——用户一致认为其在整体外观和纹理相似性方面都更为准确。

The potential applications for VisiPrint extend far beyond the hobbyist’s workshop. In fields where aesthetics are critical, this tool offers a powerful advantage:

VisiPrint的潜在应用远远超出了爱好者的工作坊。在美学至关重要的领域，这个工具提供了强大的优势：

It’s important to note that VisiPrint is designed to complement, not replace, standard slicer software. It focuses purely on visual accuracy, not on evaluating printability or mechanical strength. Its core mission is to close the frustrating gap between what users see on their screens and what they ultimately hold in their hands, making “what you see is what you get” a reality for 3D printing.

值得注意的是，VisiPrint旨在补充而非取代标准的切片软件。它纯粹专注于视觉准确性，而不是评估可打印性或机械性
