When Castings Take 18 Months: How 3D Printing Helped Fix the Soo Locks

In the world of industrial manufacturing, a broken part can bring billion-dollar operations to a grinding halt. This was the stark reality facing the U.S. Army Corps of Engineers at the historic Soo Locks in Michigan—until large-format metal 3D printing provided a revolutionary solution. The story highlights a pivotal shift where additive manufacturing is no longer just for prototyping, but a critical tool for solving real-world infrastructure emergencies.

在工业制造领域，一个损坏的零件可能导致价值数十亿美元的业务陷入停滞。这正是美国陆军工程兵团在密歇根州历史悠久的苏水闸所面临的严峻现实——直到大型金属3D打印技术提供了革命性的解决方案。这个故事突显了一个关键转变：增材制造不再仅用于原型制作，而是成为解决现实世界基础设施紧急情况的关键工具。

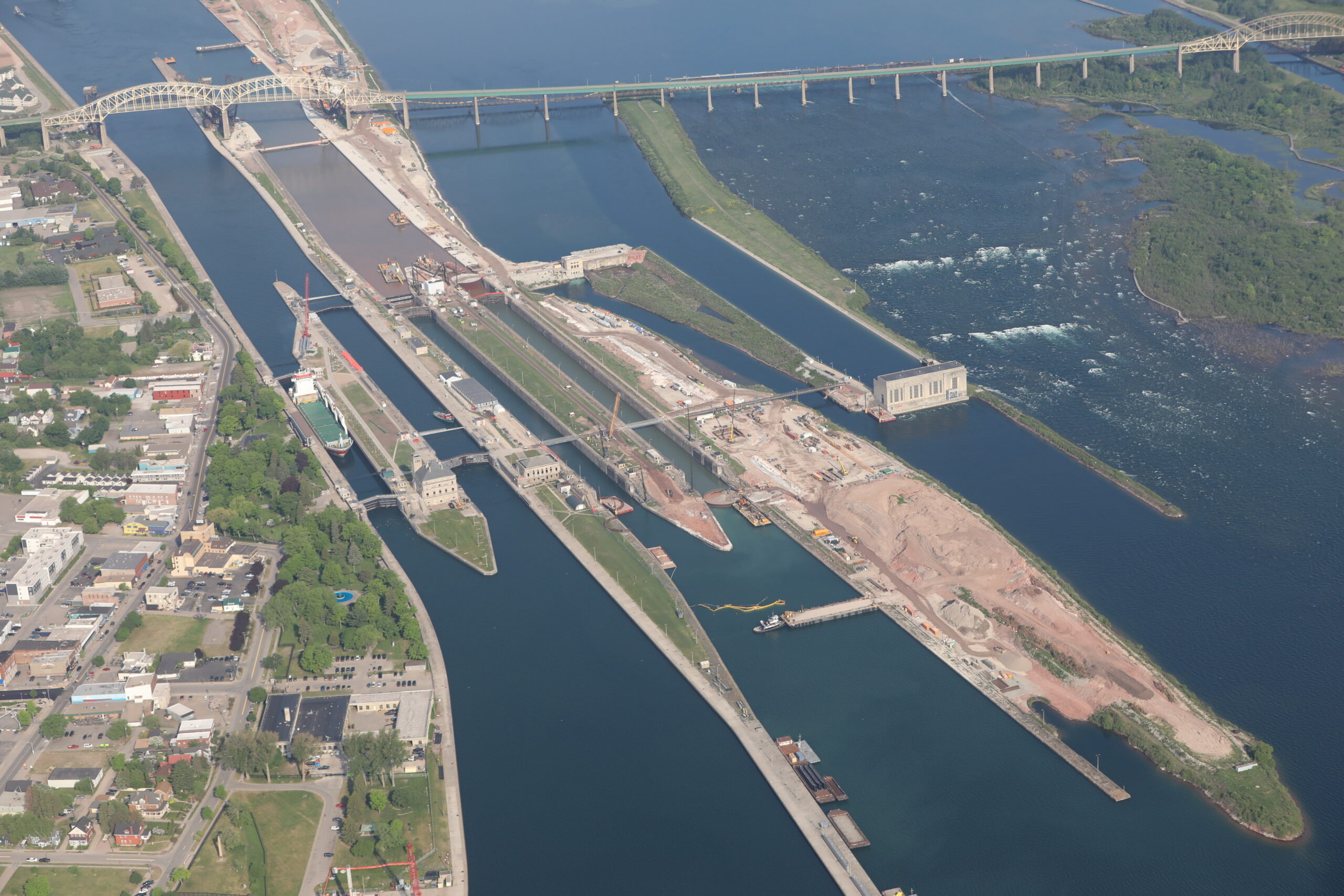

The Soo Locks are a vital shipping artery, connecting Lake Superior to the lower Great Lakes. When a massive, 12-foot steel lever arm cracked, it threatened to close this crucial passageway. The traditional fix? Have a new part cast. The quoted lead time for that casting was a staggering 18 months. With an estimated cost of $1 billion in lost GDP for every six months of closure, this timeline was simply untenable.

苏水闸是一条重要的航运通道，连接苏必利尔湖和下游的五大湖。当一个巨大的12英尺钢制杠杆臂出现裂纹时，它威胁着要关闭这条关键通道。传统的修复方法？铸造一个新零件。该铸件的报价交货期长达惊人的18个月。考虑到每关闭六个月估计会造成10亿美元的GDP损失，这个时间表根本无法接受。

Enter Lincoln Electric’s additive manufacturing team and their wire-arc additive manufacturing (WAAM) technology. Faced with this “large, time-critical, and nearly impossible to source” challenge, they proposed a radical alternative: print the part.

林肯电气的增材制造团队及其电弧增材制造技术登场了。面对这个“庞大、时间紧迫且几乎无法采购”的挑战，他们提出了一个激进的替代方案：打印这个零件。

Lincoln Electric’s approach turned a potential year-and-a-half ordeal into a three-month success story. They printed the massive lever arm in two seven-foot sections, welded and machined the joint, and delivered it for installation within the critical maintenance window.

林肯电气的方法将一场可能持续一年半的磨难变成了一个为期三个月的成功故事。他们将巨大的杠杆臂打印成两个七英尺长的部分，焊接并加工了接缝，并在关键的维护窗口期内交付安装。

Sean Schaefer of Lincoln Electric noted, “Finishing within the maintenance window meant the USACE eliminated the risk of a shutdown if the original in-service part failed unexpectedly.” This project exemplifies the core strength of industrial 3D printing: drastic lead time reduction and unparalleled responsiveness for large-scale components.

林肯电气的肖恩·谢弗指出：“在维护窗口期内完成意味着美国陆军工程兵团消除了如果原有在用零件意外失效导致停运的风险。”这个项目体现了工业3D打印的核心优势：大幅缩短交货期，并为大型部件提供无与伦比的响应能力。

Wire-arc additive manufacturing (WAAM) is particularly suited for this class of problem. It excels at producing large, robust parts measured in feet and weighing hundreds of pounds or more. Schaefer explains that the process is ideal for “anything larger than a basketball.”

电弧增材制造特别适合解决这类问题。它擅长生产以英尺为单位、重达数百磅或以上的大型坚固零件。谢弗解释说，该工艺“对于任何比篮球大的东西”都是理想选择。

Beyond just replicating existing parts, WAAM opens new doors for design. “Customers are discovering they have more design freedom with WAAM,” Schaefer indicated. This collaborative design-for-additive approach is transforming how industries think about replacement parts and new components, moving beyond the constraints of traditional casting.

除了复制现有零件，WAAM还为设计打开了新的大门。谢弗表示：“客户发现使用WAAM他们拥有更多的设计自由。”这种协作式的增材设计方法正在改变行业对替换零件和新组件的思考方式，超越了传统铸造的限制。

The success at the Soo Locks is not an isolated case. Industries that cannot afford downtime are taking notice. Lincoln Electric has applied this same WAAM technology to produce critical replacement parts for oil and gas refineries and power generation facilities, achieving up to an 80% reduction in lead times compared to traditional casting.

苏水闸的成功并非孤例。无法承受停机的行业正在关注。林肯电气已应用同样的WAAM技术为石油和天然气炼油厂以及发电设施生产关键的替换零件，与传统铸造相比，交货期缩短了高达80%。

This shift represents a fundamental change in supply chain resilience. The ability to print a part on-demand, rather than wait for a long-lead casting, translates directly into massive cost avoidance and operational continuity. It’s a powerful argument for integrating additive manufacturing into industrial maintenance and repair strategies.

这种转变代表了供应链韧性的根本性变化。按需打印零件的能力，而不是等待漫长的铸件交货期，直接转化为巨大的成本规避和运营连续性。这是将增材制造整合到工业维护和维修策略中的一个有力论据。
